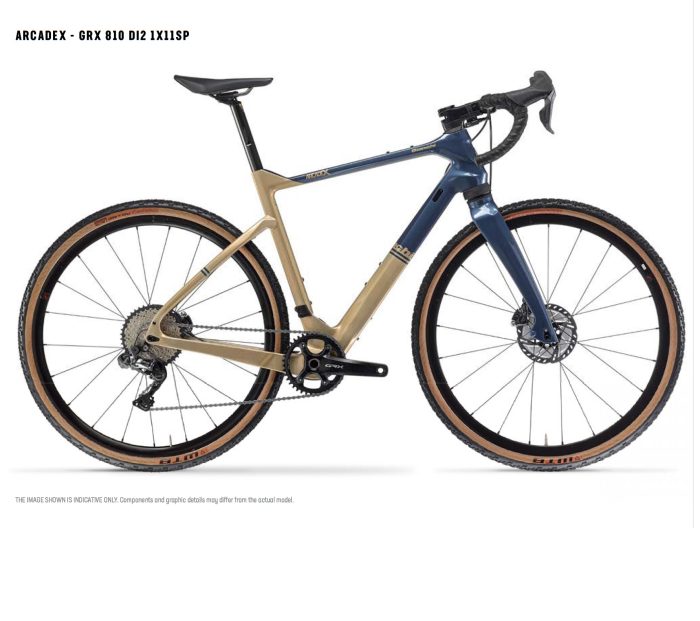

Bianchi Arcadex Carbon Allroad disc GRX810 1×11 DI2

NATURE AMPLIFIED

THE ARCADEX GRAVEL BIKE PERFECTLY COMBINES AN EMOTIONAL COMMUNION WITH NATURE, AND THE EXHILARATING RUSH OF BIANCHI RACING DNA. IT DELIVERS DISTINCT PERFORMANCE FOR THE MODERN GRAVEL RIDER.

THE SCULPTED CARBON FIBRE FRAME IS INCREDIBLY RESPONSIVE, SO THE ARCADEX IS PRIMED TO PERFORM AS SOON AS YOU PUSH ON THE PEDALS – WHETHER RIDING TO EXPLORE, OR INDULGING YOUR COMPETITIVE SPIRIT. TAKE OFF-ROAD CAPABILITY, COMBINE IT WITH THE SPEED AND AESTHETICS YOU LOVE ABOUT YOUR ROAD BIKE, THEN YOU HAVE THE ARCADEX.

FRAME

Arcadex Carbon, 1.5 headset, seatpost diam. 31.6mm,
thru axle 12x142mm, flat mount caliper, Pressfit 41
BB, compatible with 700x42mm or 650×47 tire and
mudguard and rear carrier predisposition, sizes: XS-SMMD-
LG-XL

SEATPOST CLAMP Included in the frame

HEADSET FSA SMR HS w/1.1/4 custom top cup, 1.1/4-1.5inch 36/45gr
ACB bearings

FORK

Bianchi Full Carbon blades, flat mount caliper, thru axle
12x100mm w/electronic front Smart Active Suspension
steerer tube, 20mm travel

SHIFTER Shimano GRX 815 Di2 ST-RX815 1x11sp

REAR DERAILLEUR Shimano GRX Di2 RD-RX817 11sp, top normal shadow
plus design, direct attachment

ELECTRIC CABLE Shimano Junction-A SM-EW90-A, Dura-Ace Di2, E-Tube
port X3, charging port X1

CHARGER / PWR CABLE Shimano Battery charger SM-BCR2, including charging
cord for usb

CRANKSET Shimano GRX 810 FC-RX810-1 40T, Hollowtech II, Crank
Length: 170mm-XS-SM, 172.5mm-MD-LG, 175mm-XL

BOTTOM BRACKET Shimano SM-BB72-41B, PressFit

CHAIN Shimano Ultegra CN-HG701-11

CASSETTE / FREEWHEEL Shimano XT CS-M8000 11sp, 11-13-15-17-19-21-24-28-
32-37-42T

BRAKE Shimano BR-RX810, flat mount calipers

BRAKE LEVER included w/shifters

DISC ROTOR Shimano SM-RT800 Center Lock, diam. 160mm

RIM/WHEELSET
Fulcrum Rapid Red 500 DB 2WF-R C23 AFS, alloy,
2-Way fit Ready (for clincher and tubeless ready),
24mm profile, thru axle front 12x100mm, rear 12x142mm

TIRE WTB Riddler Race 700x37c, Dual DNA Compound, 60tpi
Casing, Aramid Bead, TCS light/fast rolling

STEM Fsa ST-OS-188/SMR-0°, Alloy 6061 , 1.1/4″, rise 0°, Ext:
80mm-XS/SM, 100mm-MD, 120mm-LG/XL

HANDLEBAR
Aluminum 6061, Aero shape, reach 70mm, flare angle
16°, drop 130mmx40/44cm, size: 40cm=XS/SM, 42cm-
MG/LG, 44cm-XL

GRIP / TAPE La Spirale Ribbon cork w/carbon look plug w/Bianchi
logo

SEATPOST Reparto Corse UD Carbon shaft, forged alloy head,
15mm offset, diam. 31,6mm, length: 300-350mm

SADDLE Fi`zi:k Argo Tempo R5, nylon carbon reinforced shell w/
WingFlex, rail S alloy, 260x150mm
