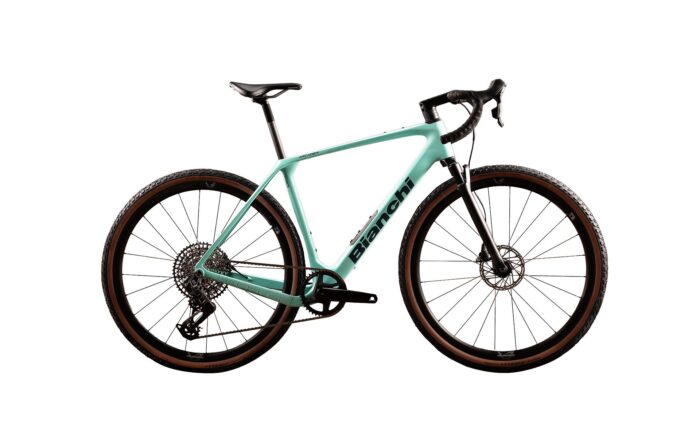

Bianchi ARCADEX PRO APEX/GX eTAP 12S celeste

COLOR

AF – CK16 / Green water – Matt

FRAME

Arcadex PRO
Disc Brake Specification: Flat Mount 140/160
Bottom Braket Standard: PressFit 86.5 X Ř41
Rear Axle: thru12
OLD (Over-Locknut-Dimension): 142 mm
Front Derailleur: Non Compatible
Rear Derailleur: SRAM UDH Hanger type
Max Chainring Compatibility: 38T-44T
Minimun Chainline: 45.5 mm
Tire Clearance: ETRTO 622-50 mm
SeatPost O.D: Ř27.2 mm
Material: Epoxy – SM Carbon Fiber Composite

HEADSET

Bianchi Custom Acros ICR (Internal Cable Rounting)
Spacers: 5 mm x1, 10 mm x3
Headtube Cover: Bianchi Costum
Compresion Ring: 1.125 Inch
Top Bearing: Angular contact Bearing 42x52x7 + seal
Bottom Bearing: Angular contact Bearing 40x52x7 + seal
Base Plate with seal, Steerer 1.5″ (39.78 mm)

FORK

Suspension Fork: RockShox Rudy XPLR
Travel: 30 mm
Disc Brake Specification: Direct Flat Mount 160/180
Front Axle: thru12
OLD (Over-Locknut-Dimension): 100 mm
Tire Clearance: ETRTO 622-50 mm
Steer tube Diameter: Tapered 1 1/8″ to 1.5″
Fork Rake: 51 mm

SHIFTER

Sram Apex AXS HRD Shift System

REAR DERAILLEUR

Sram GX Eagle Transmission (T-type AXS)

CRANKSET

Sram Rival 1 WIDE 40T
Crank Length: 170 mm-XS(47)-SM(51), 172.5 mm-
MD(55)-LG(58), 175 mm-XL(61)
BOTTOM BRACKET Sram DUB PressFit Road Wide 86.5 X Ř41

CHAIN

Sram GX Eagle Transmission Flattop

CASSETTE

Sram GX Eagle Transmission, XS 1272 T-Type, 10-52T
Driver Body Interface: XD

BRAKE

Sram APEX | Pad Type: Steel-Backed Organic

DISC ROTOR

Sram CenterLine Rotor
Hub Interface: Centerlock
Rotor Diameter: 160 mm (front&Rear)

WHEELSET

Velomann Terbium clincher and tubeless ready
Rim Diameter: 700C
Material: Carbon
Rim Height: 30 mm
Inner Wigth Channel: 25 mm

TIRE

Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan
sidewall

STEM

Velomann AICR Alloy
Rise: -2°
Steerer Diameter: 1-1/8″ (28.6 mm)
HB interface Diameter: 1-1/4″ (31.8 mm)
Stem Lengths: 80 mm – XS(47), 90 mm – SM(51), 100
mm-MD(55), 110 mm-LG(58),120 m -XL(61)

HANDLEBAR

Velomann Gravel ICR Alloy
Flare: 16° | Drop: 130 mm | Reach 70 mm
Interface Diameter: 1 1/4″ (31.8 mm)
HandleBar Widths: 400 – SX(47) SM(51), 420 – MD(55)
LG(58), 440 -XL(61)

TAPE

Bianchi Hexagon tape 2.5 mm thickness, Full black

SEATPOST

Velomann Carbon UD
SeatPost O.D: Ř27.2 mm | Seatpost lengths: 300 mm-
SX(47), 350 mm-SM(51) MD(55), 400mm-LG(58) XL(61)”

SADDLE

Velomann MITORA 149 H1
cover: soft touch | padding: foam | shell: nylon carbon
rails: Aisi Steel | lenght: 250 mm | width: 149 mm
weight: 230g ± 2″
