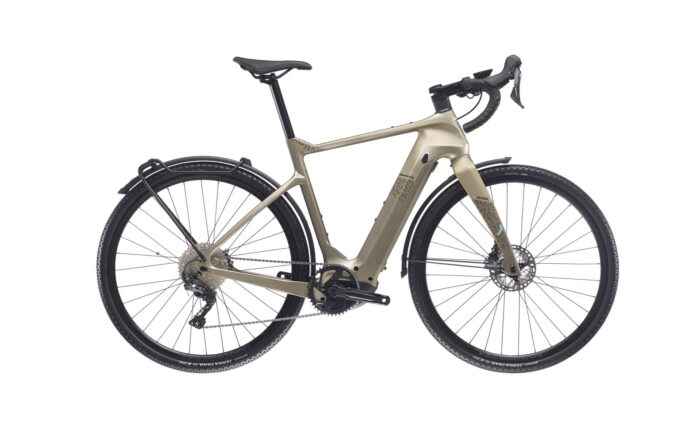

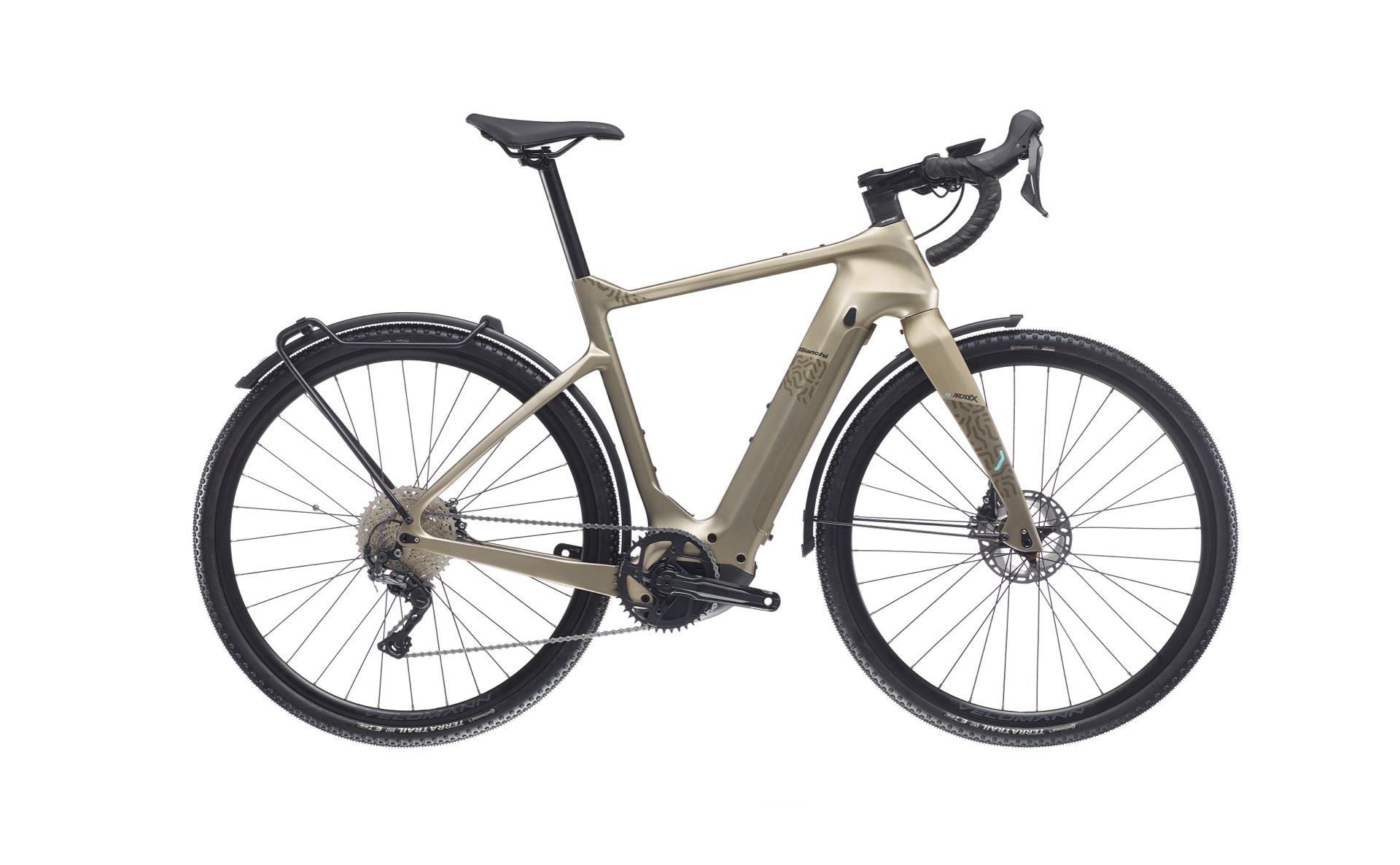

Bianchi e-Arcadex Tourer Apex XPLR 12sp Bosch

Gravel e-bike

MOTOR

Bosch Performance Line CX, 85Nm, Kiox display
BATTERY

Bosch Powertube 500Wh integrated battery
FRAME

e-Arcadex Carbon sizes: 47, 51, 55, 58, 61 – 12×142 mm thru axle – Flat mount 140 disc brake type – Fender compatible
FORK

Full Carbon 1.5″ flat mount, disc brake, thru axle 12x100mm
HEADSET

FSA SMR HS with 1-1/8”

SHIFTERS

SRAM Apex Disc Brake
REAR DERAILLEUR

SRAM Apex XPLR
CRANKSET

FSA E-bike Crankset / 165mm – 170mm – 175mm / Hollow Alloy FSA Alloy 42T
BOTTOM BRACKET

Included in the Drive unit
CHAIN

SRAM Apex

BRAKES

Sram included in the shifter
ROTOR

Sram Paceline, Center lock, 160mm

WHEELS

Velomann, 23-622, profile 24,5mm, 32hole, tubeless ready
REARHUB

Formula RXC-142S road disc , center lock, J-bend, thru axle 12x142mm
FRONTHUB

Formula CL-712 road disc , alloy 32h, center lock, J-bend, thru axle 12x100mm
TIRE

Continental 40-622 Terra Trail

STEM

Velomann, Alloy 6061 , 1 1/4″, raise 0° Ext: 80mm-XS/S, 100mm-M, 120mm-L/XL
HANDLEBAR

Velomann Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120 x size 40cm and 130mm x size 42-44-46cm Size: 400mm-XS/S, 420mm-M/L, 440mm-XL
GRIPS

La Spirale Ribbon cork

SEATPOST

Velomann Alloy shaft, alloy head, 15mm offset, 31,6mm Length: 300mm/XS – SM ; L350mm/MD – LG -XL
SADDLE

Velomann, carbon steel rail, 262×145
ACCESSORIES

MUDGUARDS

SKS A46 profile, integrated tail light XELTEC, 12V
REARCARRIER

SKS Infinity GT3
FRONTLIGHT

Supernova Mini2 – 235 lumen – 4 W a 12 V
REARLIGHT

Integrated in the mudguard
