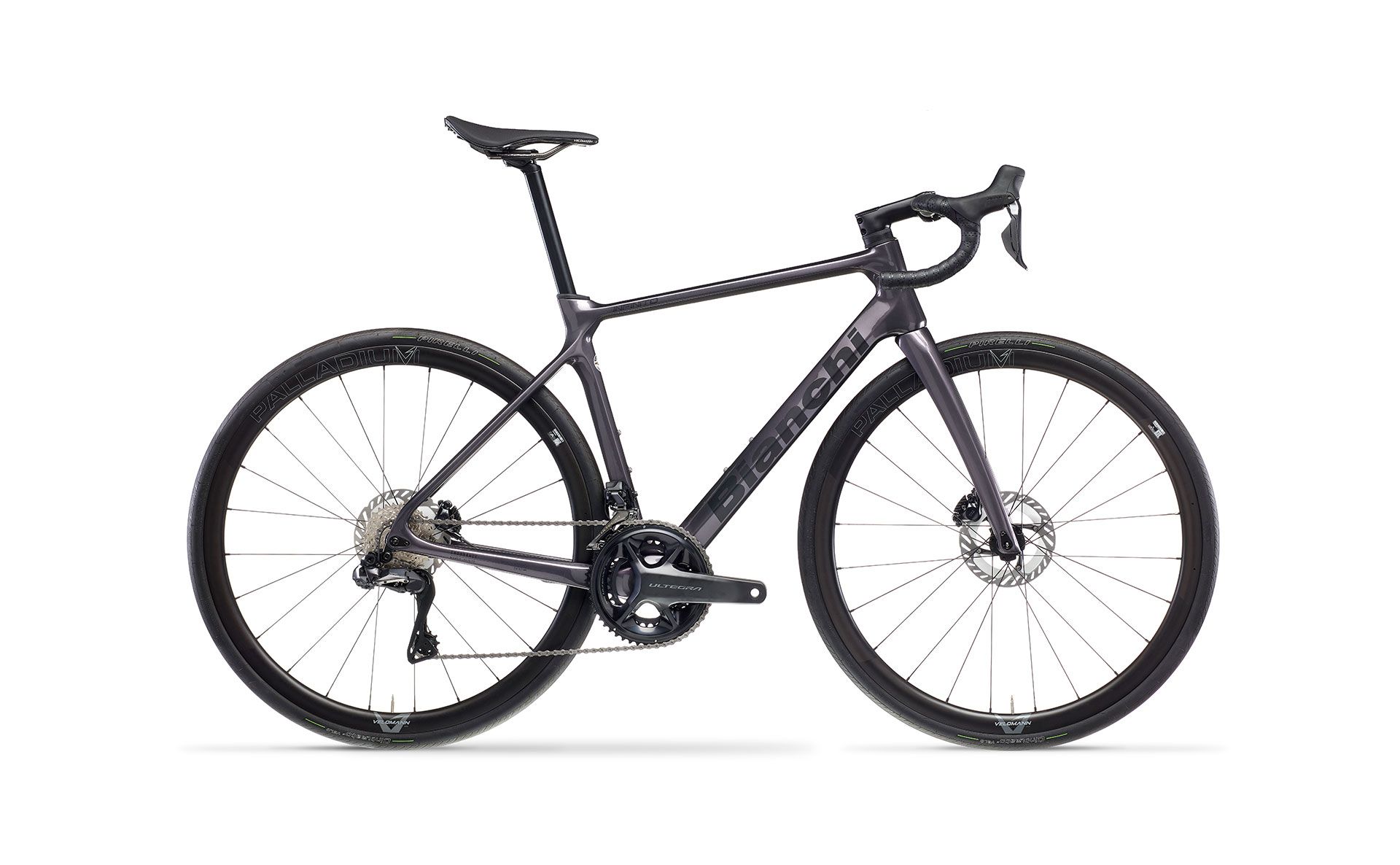

Bianchi INFINITO ULTEGRA DI2 12SP Purple

Designed for

Long distances

Riding Conditions

Riding on paved roads.

COLOR

2M: Purple black – glossy/ black – matt decals

FRAME

INFINITO carbon ICR – 1.5″- 1.5″, Disc Brake,
Mechanical/Electronic Di2, compatible with 32″ tire,
BBset pressfit 86,5×41, rear dropout 12 x 142mm
thru axle
sizes 47-50-53-55-57-59-61cm

HEADSET

Acros/FSA for ICR cable routing

FORK

Full Carbon ICR – 28″- 300mm – 1.5″ ,
dropout 12 x 100mm thru axle

SHIFTER

Ultegra Di2 hydraulic disc brake for road
ST-R8170(L), ST-R8170 (R)

REAR DERAILLEUR

Ultegra Di2 12sp
RD-R8150, 12-speed, max 34T
FRONT DERAILLEUR

Ultegra

Di2 12sp
FD-R8150, Ultegra Di2, brazed-on type

CRANKSET

Ultegra 12sp
FC-R8100, hollowtech 2, for rear 12- speed, 170-
172,5-175mm, 50x34T
Crank Length:170mm-47~54cm, 172.5mm-55~59cm,
175mm-61cm

BOTTOM BRACKET

Shimano KSMBB7241B pressfit

CHAIN

Shimano CN-M8100, 12- speed

CASSETTE

Ultegra 12sp 11-34T
CS-R8100,Ultegra 12sp, 11-12-13-14-15-17-19-21-24-
27-30-34T

BRAKE

Shimano BR-R8170 Hydraulic disc brake
included in the shifter

DISC ROTOR

Shimano RT-CL800, 160mm front rear

RIM/WHEELSET

Velomann Palladium, 33mm profile, 700x21c, 24h,
HG11 body, spoke pattern 2 to 1, tubeless-ready, set
1450 gr, sealed cartridge bearings

TIRE

Pirelli Cinturato™ Velo TLR 32mm (622-32),
ArmourTech

STEM

Velomann, AL6061, fully internal cable routing stem,
compatible with Acros AICR system
Ext: 90mm (47), 100mm(50/53), 110mm(55/57),
120mm(59/61)

HANDLEBAR

Velomann Aero Compact handlebar full ICR, alloy diam.
31,8mm, reach 74mm, drop 116mm
Size: 400mm-47~53cm, 420mm-55~57cm,
440-59″61cm

GRIP / TAPE

Bianchi Arrow premium tape, 2.5mm thickness,
full black

SEATPOST

Velomann, custom D-shape, alloy shaft 2014,
head alloy 6061, Setback 25mm
L350mm =47>57cm; L380mm= 59>61cm

SADDLE

Velomann Mitora Lite 139 saddle, 139x250mm carbon
rail 7×9,1mm
