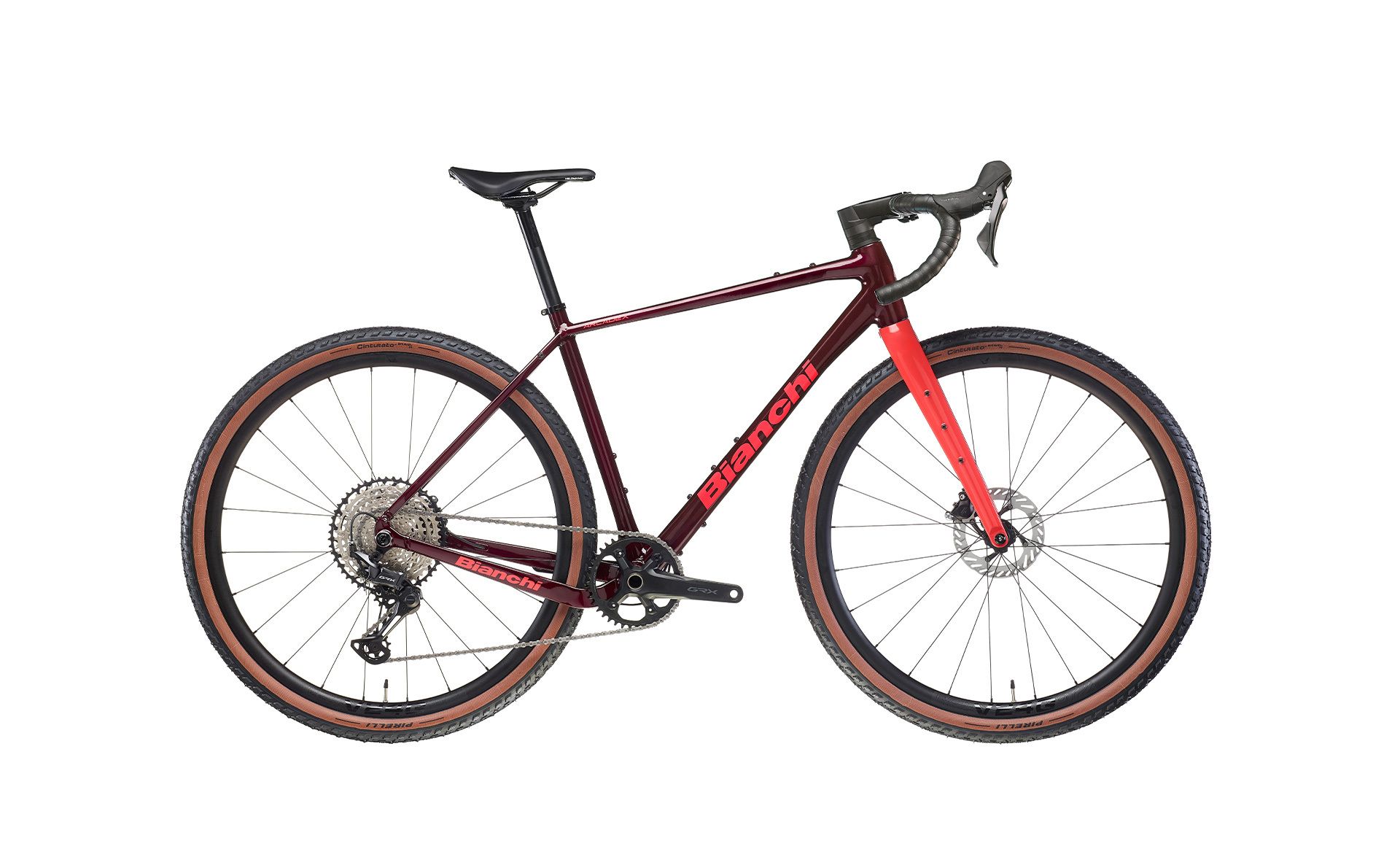

Bianchi ARCADEX Alum GRX610/822 2026 Burgundy Coral Glossy

COLORS
U9 - Turquoise - CK16 [Full Glossy]
UB - Light Green - Forest Green [Full Glossy]
UP - Burgundy - Coral Red [Full Glossy]
FRAME
Bianchi Arcadex AL, aluminium, hydroformed
tubes, tire clearance 50 mm, T47 Bottom
bracket, rack and fender compatibility sizes XSSM-MD-LG-XL
SEATPOST
CLAMP Bianchi Aluminium, diameter 31.8 mm
SEATPOST Velomann Aluminium, 27,2 mm, Seatback 0 mm
length: 300 mm (XS); 350 mm (SM-LG); 400 mm
(XL)
HEADSET Acros for internal cable routing
FORK Bianchi Arcadex, Carbon, flat mount disc frake,
thru axle 12x100 mm
STEM
Velomann AL6061, rise -7° Size: 70 mm (XS); 80mm (SM); 90 mm (MD); 100 mm (LG); 110 mm
(XL)
HANDLEBAR
Velomann Gravel, Aluminium, diameter 31.8mm, reach 70 mm, drop 130 mm, flare 16 deg
Size: 400 mm (XS-SM); 420 mm (MD-LG); 440mm (XL)
GRIP / TAPE Bianchi Hexagon tape, 2.5 mm thickness, black
SADDLE Selle Royal SRX Open
WHEELSET Velomann V22G, Rim: Aluminium, 622x24c, 24h
TIRE Pirelli Cinturato Tanwall, 700x45
SHIFTER Shimano GRX, shifter lever ST-RX610, caliper BRRX400
REAR
DERAILLEUR Shimano GRX, RD-RX822, 12sp

CRANKSET Shimano GRX, FC-RX610, 40T Crank length: 165
mm (XS-SM); 170 mm (MD-LG); 172.5 mm (XL)
BOTTOM BRACKET Token T47, 24 mm axle, 86.5 mm width
CHAIN Shimano 105, CN-M7100
CASSETTE /FREEWHEEL
Shimano SLX, CS-M7100, 10-51T, 10-12-14-16-
18-21-24-28-33-39-45-51T
BRAKE LEVER Included in the shifter
BRAKE Shimano BR-RX410 Hydraulic disc brake
FRONT DISK
ROTOR Shimano RT-CL700 Center Lock, 160 mm
REAR DISK
ROTOR Shimano RT-CL700 Center Lock, 160 mm
