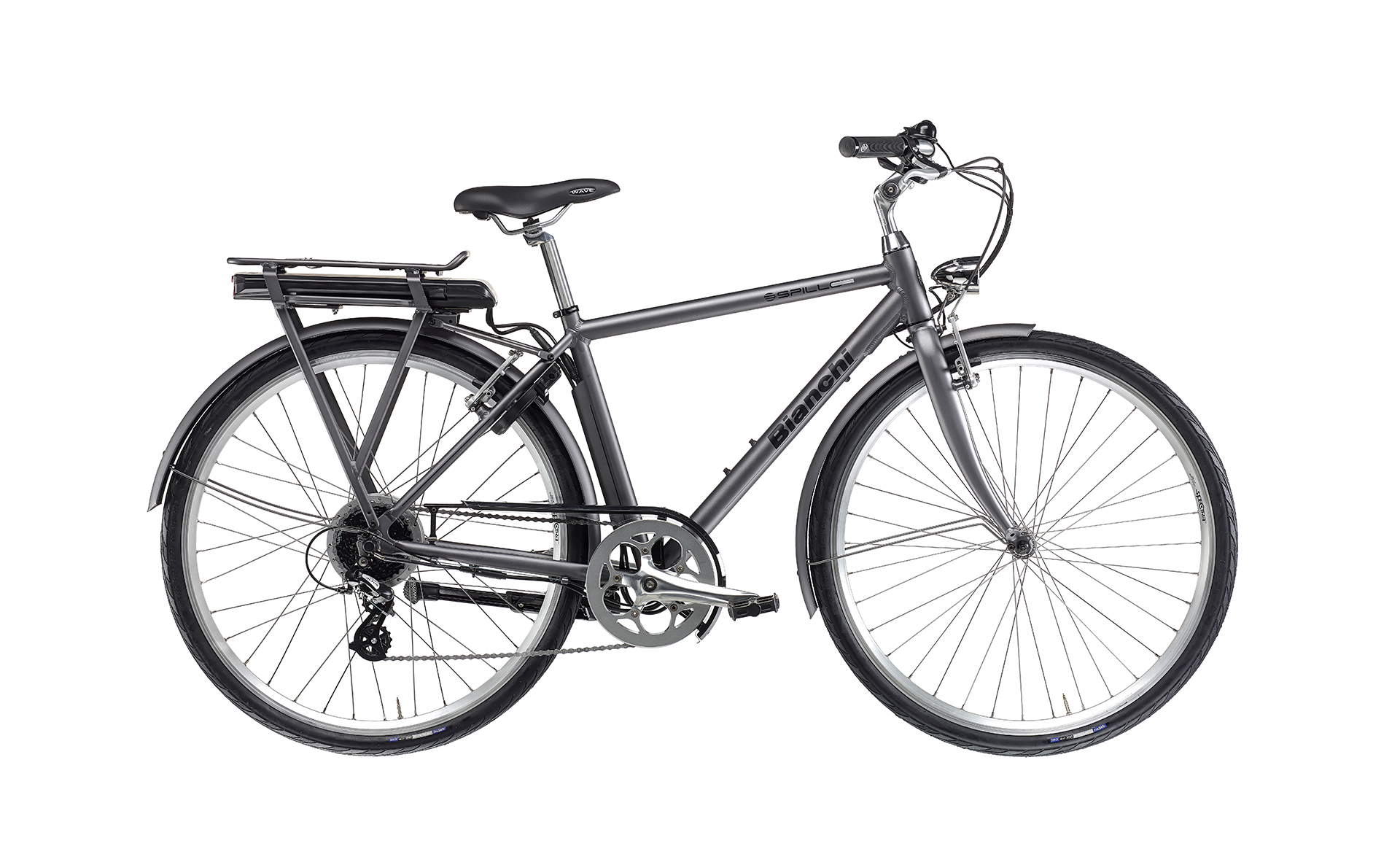

Bianchi E-SPILLO CLASSIC Gent 28 V-brakeAltus 8S GOING Rear Hub Motor

CODE YQBT2

COLOR SL - Gun Barrel Grey/Black matt

FRAME E-Spillo Classic Gent, Alu PG 6061,V-brake, O.L.D.139mm

for rear hub motor unit, sizes: 47, 53cm

SEATPOST CLAMP MX-112 Alloy, diam. 31,8mm

HEADSET VP-MH305C Semi-integrated

FORK Bianchi Steel, V-Brake

SHIFTER Shimano Altus 8sp

REAR DERAILLEUR Shimano Altus 8sp

CRANKSET Prowheel Ounce-248AC 48T, crank length 170mm

BOTTOM BRACKET axle length:124mm, w/speed sensor cable

CHAIN Kmc Z8.1 8sp

CASSETTE / FREEWHEEL Shimano CS-HG200-8, 8sp, 12-14-16-18-21-24-28-32T

BRAKE V-Brake Alloy

BRAKE LEVER V-Brake levers 4 fingers

FRONT HUB Formula FM-21, 36hole, 14G, O.L.D. 100mm, w/QR

REAR HUB EGoing Rear hub motor unit

RIM/WHEELSET Spectra 622-19c 36h

TIRE Spectra Unda Regular 700x37, 37-622 27TPI

STEM Alloy adjustable, diam. 25,4mm, ext: 85mm, quill length:
180mm

HANDLEBAR Alloy, width 590mm, rise 26mm, diam. 25.4mm, 33°
backsweep

GRIP / TAPE Herrmans 130mm

SEATPOST Alloy diam. 27.2mm, length: 350mm

SADDLE Selle Royal Wave

FRONT LIGHT Retro Sport for ebike, 20lux. 0,5w LED IP144

REAR LIGHT included in the SR11 battery

REAR CARRIER Atranvelo Carrier Sport 28

KICKSTAND Atranvelo KS Rex Atran 235

MUDGUARD Stee

l
MOTOR UNIT
EGoing Rear hub motor unit 36V,250W, OLD 135mm
w/418Wh rear carrier SR11 battery, w/led display, w/speed
sensor
