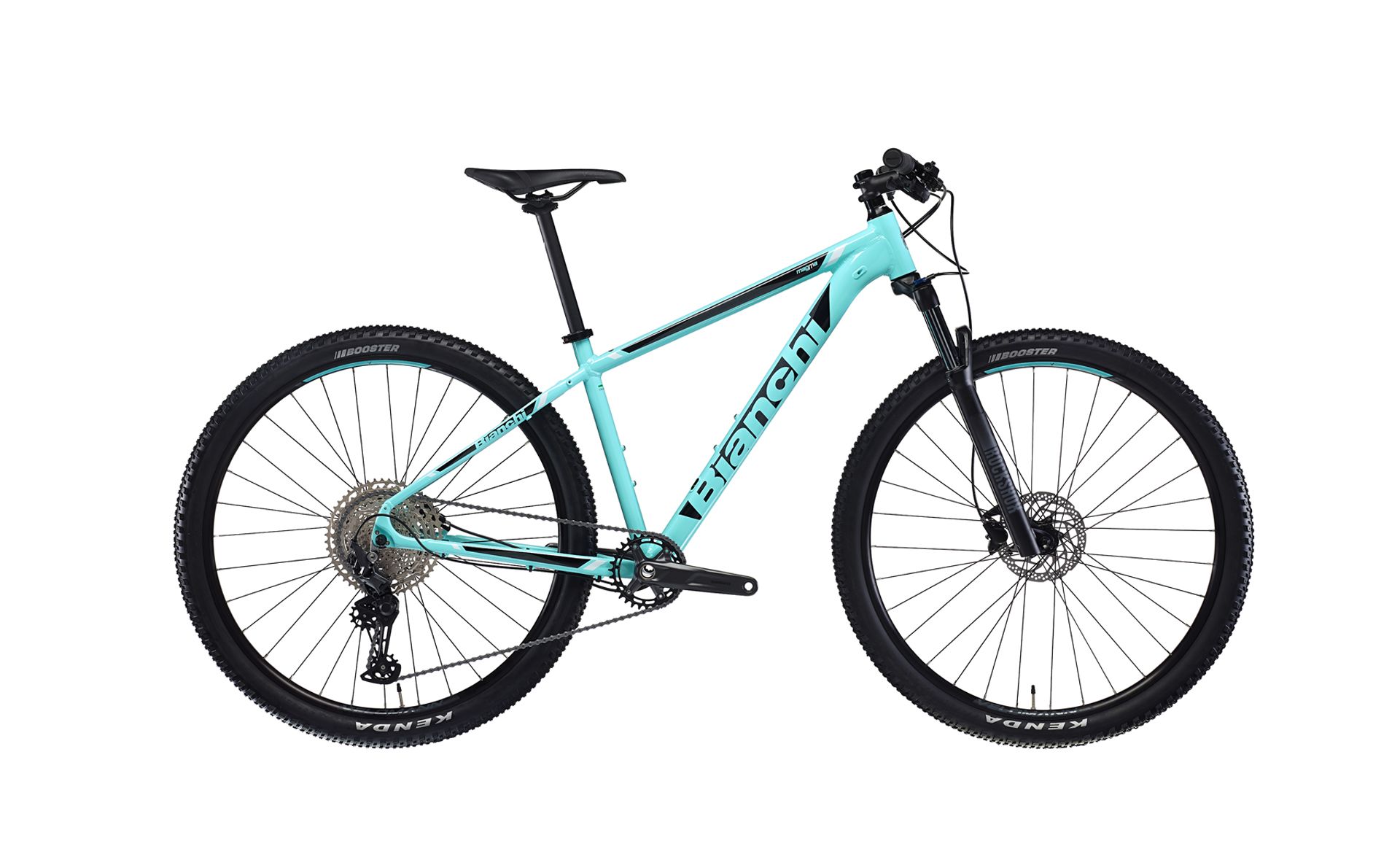

Bianchi MAGMA 9.0 Deore 1×11 boost celeste

POSITIONING

The entrance door to the Bianchi off road world with the unique Italian style and design.

COURSE/TERRAIN

Non-extreme climbs or descents, gravel or fire roads.

END USE DESTINATION

All round model for beginners or young riders. For anyone who wants to switch from sport, commuting or multi-day travelling.

PRODUCT FEATURES:

• Alu frame with 29in wheels

• Leisure dedicated geometry in 29

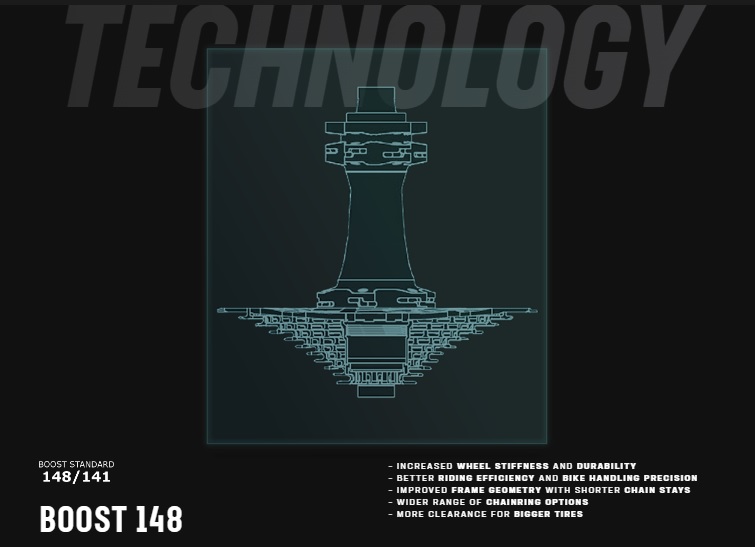

• Low brake PM 160mm and BOOST QR 141mm

• Carrier and mud-guards ready

• HDM side swing (BOOST QR 141mm version)

• Low clamp FD bottom pull (135mm QR version)

• AL6061 frame

Frame

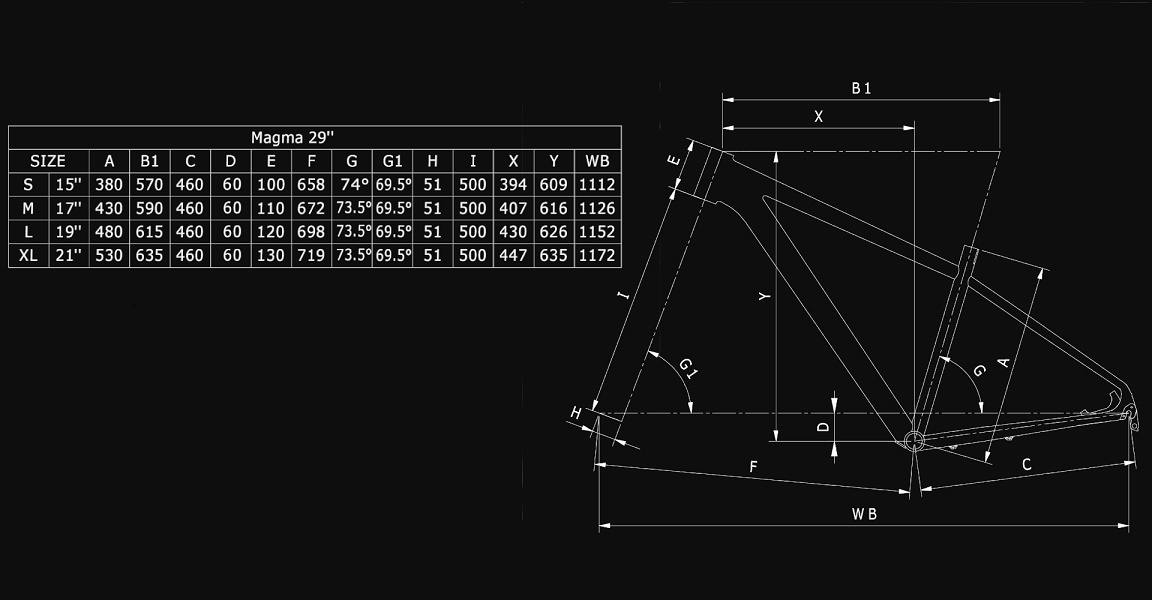

Magma 29 alu, 1.1/8″ HT, BSA 68mm, seatpost diam. 27,2mm, HDM bottom pull or Side-Swing, PM 160mm, BOOST 9x141mm QR, internal cable routing, sizes 15-17-19-21″

Fork

Rock Shox Judy TK 29″ 100mm w/Remote Lockout,1,1/8″ steel HT, alloy crown, coil spring w/pre-load adjust, steel 30mm stanchions, magnesium lowers w/PM 160mm disc mount, 9mm QR

Headset

Fsa TH888 forged steel cups ID diam.34mm, stack height 12,8+11=23,8mm, w/15mm cap

Shifters

Deore SL-M5100-R 1×11, clamp band

Rear Derailleur

FH-MT200-B for Center Lock, 32h 141mm OLD BOOST

Front Derailleur

Formula CL-1420 for Center Lock, 32h 100mm OLD, loose balls, axle length 108mm, w/QR

Crankset

Shimano FC-M5100-1, 32T, crank length: 170mm-15″, 175mm-17/21″

Bottom Bracket

included in the crankset

Chain

Kmc X11 EPT finish, 11sp

Brakes

Shimano BR-MT200, resin pad

Rotor

Shimano SM-RT10, 160mm front & rear, Center Lock, for resin pad only

Wheels

VelomannDP2.5, 622x25c, pin joint, 32h, anodized, no eyelet, Presta valve hole

RearHub

FH-MT200-B for Center Lock, 32h 141mm OLD BOOST

FrontHub

Formula CL-1420 for Center Lock, 32h 100mm OLD, loose balls, axle length 108mm, w/QR

Tire

Kenda Booster 29×2.20, DTC compound, 30Tpi, wire, ETRTO 56-622

Stem

Velomann 3D forged Alloy 6061, +/-7°, 1.1/8mm, diam. 31.8mm, ext: 80mm-15/17″, 90mm-19/21″

Handlebar

Velomann Flat top DB Alloy 6061-T6, width 720mm, diam. 31,8mm, 9° backsweep

Grips

T-one T-GP48B, one piece grip, TPR material, 130mm

Seatpost

Velomann AL2014 shaft w/alloy head, diam. 27.2mm, 0mm seatback, length 350mm

Saddle

Velomann, steel rails, PVC soft touch cover, 140mm width
